RF Rotary Joints for Radar Antenna Systems in Australia

A radar antenna can rotate through 360 degrees while its RF signal passes to a stationary transceiver. A rotary joint for radar antenna systems in Australia provides this rotating connection, allowing the antenna to turn without interrupting the signal path.

The joint’s design determines how signals cross the rotating interface. Coaxial rotary joints use rotationally symmetric TEM mode and sliding contacts on the inner conductor. Waveguide designs use a different transmission structure and mode. The right arrangement depends on the system’s RF and mechanical requirements.

This article explains how rotary joints work in radar antenna systems and what to consider when evaluating coaxial designs, contact types, insertion loss and VSWR. It also shows how electrical and mechanical requirements interact, helping you define what your application needs.

What is a rotary joint?

A radar antenna can rotate through 360 degrees while its RF signal connects with stationary equipment. A rotary joint maintains that signal path across the moving interface. Without it, a fixed cable would twist as the antenna turned. The joint links mechanical rotation with continuous RF transmission.

Waveguide rotary joints transfer microwave energy through hollow conductive passages. In many radar systems, the stationary side uses rectangular waveguide carrying TE10 mode. The rotating interface needs a mode that remains consistent as the antenna turns. A circular section can carry TE01 mode, which is rotationally symmetric around the joint’s axis.

That symmetry is central to the transition. The stationary rectangular waveguide converts TE10 into circular TE01 before the rotary interface. After the rotating section, another transition converts TE01 back into rectangular TE10. This sequence maintains the transmission path as the antenna changes orientation.

Over-mode circular waveguides can support more than one propagating mode, so controlling unwanted modes is a key design consideration. The joint’s transitions and geometry must limit modes that could affect signal quality. Engineers assess operating frequency, waveguide dimensions and required power handling together.

Primary radar waveguides carry transmitted pulses towards the antenna and returning echoes towards the receiver. A rotary joint sits in this feed path, transferring RF energy between stationary and rotating sections. A system with separate transmit and receive paths, for example, may need a multi-channel arrangement. The radar architecture determines the channel requirements.

For Australian installations, assess the rotary joint as part of the complete radar system. Requirements depend on the equipment, installation and operating environment. The joint’s electrical interfaces, RF performance and mechanical mounting all matter. Define the system context in the project specification before identifying applicable standards or requirements.

There is no universal price for a radar rotary joint. Its configuration depends on frequency, power handling, waveguide dimensions, channel count and operating conditions. Define these requirements to establish what the design and procurement must cover.

Rotary joint designs differ by RF architecture, frequency band and interface. For a waveguide joint, specify the required mode transitions and connection geometry. For a coaxial design, document the RF path and contact arrangement. This distinction helps Australian buyers identify designs suited to their radar systems.

Installation starts by matching the joint’s interfaces to the stationary and rotating waveguides. Align the assembly with the antenna axis, secure its mounting and check for binding during movement. Follow the equipment’s documented inspection and testing procedures, focusing on mounting security, alignment and changes in RF performance.

Common failure modes include contact wear in contact-based designs, misalignment, mechanical binding and degraded signal transmission. Correct alignment and suitable mechanical support help reduce avoidable loading. If RF performance changes in a waveguide assembly, inspect its transitions and connections. Compare test results with the system’s acceptance criteria.

For repair and testing, follow the radar equipment’s service documentation and applicable service procedures. Technical support for selecting a rotary joint is a separate matter. Record the equipment identification, operating band, configuration and observed fault symptoms to describe the issue clearly.

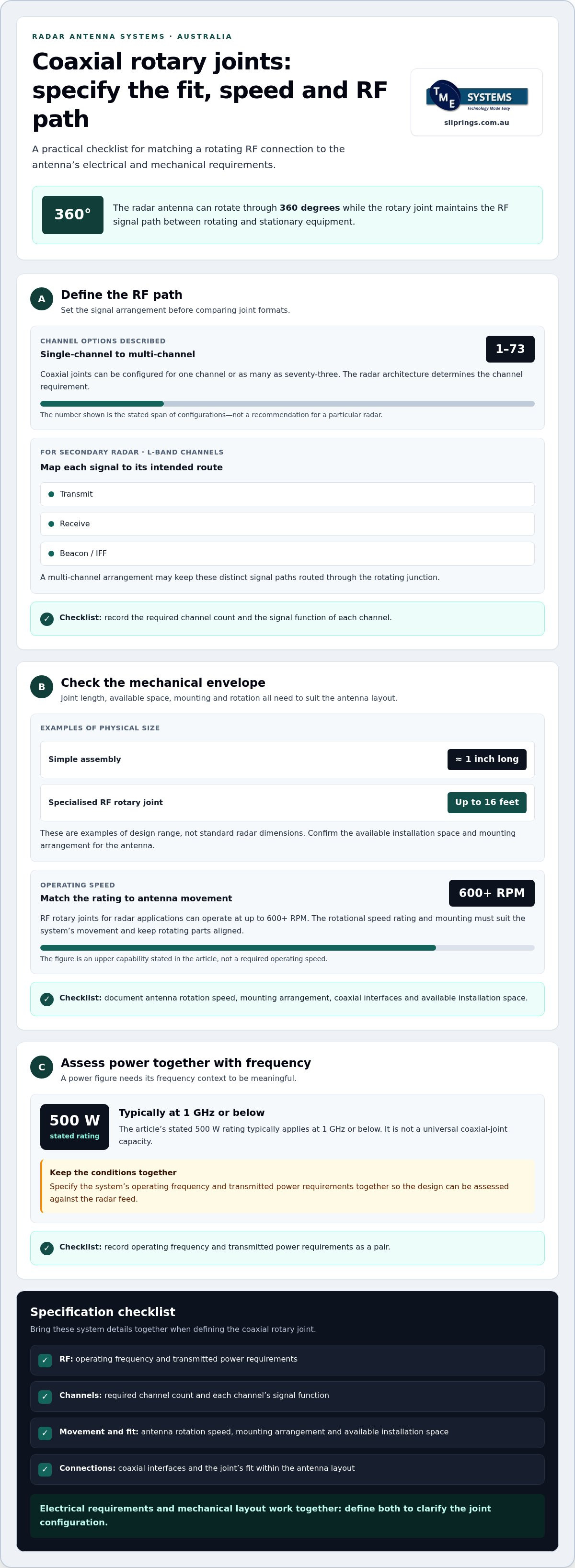

Coaxial rotary joints

A coaxial rotary joint carries RF signals between stationary and rotating equipment through a coaxial transmission path. Its inner and outer conductors maintain the signal route across the moving interface. For radar, the joint must suit the operating frequency, channel arrangement and mechanical layout. These requirements shape the assembly more than its physical size alone.

Coaxial joints can be configured for one channel or as many as seventy-three channels. A simple assembly may be approximately one inch long, while specialised RF rotary joints can reach sixteen feet. These examples illustrate a wide design range, not a standard radar specification. The antenna layout and signal paths determine the required format.

Operating speed also affects selection. RF rotary joints for radar applications can operate at up to 600+ RPM. The rotational speed rating must suit the antenna’s movement, while mounting must keep rotating parts aligned. A mismatch between speed, mounting and system demands can affect mechanical operation and RF transmission.

Power handling depends on frequency and design. A stated rating of 500 W typically applies at 1 GHz or below, so it cannot be treated as a universal coaxial-joint capacity. Specify the system’s frequency and power conditions together. This gives engineers the context needed to assess the joint against the radar feed.

For secondary radar, L-band coaxial channels can carry distinct signal paths through the rotating junction. A multi-channel arrangement may separate transmit, receive and beacon/IFF signals, preserving the radar’s intended routing across the interface. The channel plan should identify each signal function and its connection point.

When specifying a rotary joint for radar antenna systems in Australia, document the system details that govern fit and performance:

• Operating frequency and transmitted power requirements.
• Required channel count and each channel’s signal function.
• Antenna rotation speed and mounting arrangement.
• Coaxial interfaces and available installation space.

These details help distinguish a single-channel joint from a multi-channel design. They also clarify whether the assembly’s length and mounting arrangement will fit the antenna. For example, a secondary radar installation carrying transmit, receive and beacon/IFF paths needs all channel requirements considered together, rather than treating each signal as an unrelated connection.

Selection of a rotary joint for radar antenna systems in Australia should follow the complete RF and mechanical specification. Compare frequency range, power handling, channel configuration and speed with the application. Then check interfaces and installation space against the antenna assembly. This gives project teams a clear basis for evaluating coaxial rotary joint configurations.

One design example specifies an optimised radial slot with a radius of 39 mm and a length of 12 mm. The choke slot length in the optimised rotary joint is adjusted to 17 mm. These dimensions give the design review concrete geometry to record alongside the operating and installation requirements. Keeping the radial slot and choke slot measurements explicit can help distinguish the selected configuration from alternatives during engineering discussions. They are stated design details, not dimensions to assume for every coaxial rotary joint or radar installation.

Contact and non-contact rotary joint designs

Contact and non-contact designs maintain signal continuity during rotation in different ways. Radar selection depends on operating demands, signal requirements and the antenna’s environment.

Rotary joint design types

Contact-type joints use physical contact across rotating conductors to carry RF signals. That contact can wear during operation, potentially diminishing or distorting transmission. Their stated rotational life is 1M-10M cycles, so expected duty and maintenance planning matter. Non-contact designs avoid sliding electrical contact at the signal interface. Consider them where the application requires million-plus rotation cycles without maintenance.

Radar antenna joint selection

Radar antennas use coaxial or waveguide rotary joints, with contact and non-contact approaches depending on the design. For marine or land-based radar, compare frequency, signal paths, operating duty, mounting and environmental exposure. Marine equipment may face salt and moisture, while land installations have their own site conditions. Match the joint design to the actual environment and radar architecture.

Start by mapping the antenna’s signal paths. A radar system may need separate transmit and receive channels, while secondary radar can include beacon/IFF signals. This channel plan establishes whether the joint must carry one signal path or several. It also clarifies the required interfaces between stationary equipment and the rotating antenna.

Next, identify how often and how far the antenna rotates during normal operation. Repeated movement affects contact wear, while long periods of continuous rotation place different demands on the joint. Compare the expected duty with the contact design’s stated life of 1M-10M cycles. For million-plus cycles without maintenance, non-contact designs warrant consideration.

Signal performance is also part of the decision. A mechanically suitable joint still needs to maintain the required RF transmission through rotation. Assess the system’s frequency range and signal characteristics alongside the joint design. For example, a radar with distinct receive and transmit paths needs a suitable channel arrangement as well as mechanical fit.

Installation conditions also shape selection. Check available space, mounting orientation, shaft alignment and connection access. For a marine antenna, account for exposure to the operating environment. For a land-based installation, assess site conditions and the mechanical arrangement. These factors inform housing, mounting and protection requirements without changing the RF function.

Use a practical selection sequence: define the radar signals, record rotation and duty, identify site conditions, then compare compatible joint designs. This helps engineering teams weigh contact wear against the application’s cycle demands. It also brings mechanical fit and RF transmission into one specification instead of treating them as separate decisions.

Insertion loss and VSWR

Insertion loss and VSWR describe different aspects of RF performance. Insertion loss measures signal power lost through a rotary joint; VSWR indicates how well the joint matches the connected transmission path. Both matter because the joint rotates while radar signals pass between stationary and moving equipment.

RF rotary joints typically have insertion loss of 0.1-0.5 dB. Waveguide joints generally have lower loss than coaxial joints. Contact-type RF rotary joints have a stated insertion loss of 0.2-0.5 dB. Treat these figures as design context, then assess the specified joint across its operating frequency and signal path.

VSWR helps identify mismatch at the RF interface. RF rotary joints typically have a VSWR below 1.15 that remains constant during rotation. Contact-type designs have a stated VSWR of 1.2:1-1.3:1. These figures differ by design and should not be combined into one universal acceptance value for every radar installation.

Rotation can expose performance changes that a static measurement misses. A joint may show acceptable readings at rest but vary as its contacts or internal geometry move. Assessing performance across rotation helps reveal changes in transmission. Maintaining VSWR below 1.5:1 through a full 360 degree rotation is identified as an engineering achievement.

For radar design, assess insertion loss against the system’s signal budget. Higher loss means less RF power reaches the next part of the path. In a receive path, this can affect the signal delivered to the receiver. The acceptable result depends on the complete radar system, not the joint in isolation.

Use a consistent measurement approach to compare candidate joints. Record the test frequency, connection arrangement, rotational position and measured values. Repeat measurements across rotation, then compare the readings with the joint’s specified performance and the radar’s requirements. A consistent setup helps distinguish joint behaviour from effects caused by cables or test connections.

Review both measurements together. A low insertion-loss reading alone does not establish suitable VSWR, and favourable VSWR does not show how much signal power the joint loses. For example, a radar feed path may require both low transmission loss and stable matching as the antenna turns.

• Compare insertion loss at the system’s operating frequency.
• Record VSWR at rest and during rotation.
• Check whether measured changes align with the radar’s acceptance criteria.

This approach gives engineers a practical basis for assessing continuous RF performance. It also helps distinguish a joint issue from a wider feed-path mismatch. Clear records of frequency, rotation and measurement setup make results useful during specification, commissioning and later performance reviews.

RF rotary joint function and components

An RF rotary joint combines an electrical signal path with a mechanical assembly that permits relative rotation. Its interfaces connect the fixed radar feed to the antenna-side assembly, while the housing supports the joint within the mechanism. The RF connection carries energy, and the mechanical arrangement maintains the intended movement, so both must suit the system.

RF rotary joints differ by frequency, power and channel count because each requirement shapes the signal path and assembly. Frequency informs transmission geometry; power affects the demands on conducting components; channel count determines how many independent paths the joint must provide. Specify these requirements together, since meeting one alone does not establish a suitable design.

RF interfaces form the connection points at each end. Their type and orientation must match the equipment on both sides of the rotating boundary. A coaxial connection, for example, requires compatible coaxial interfaces, while a waveguide arrangement requires matching waveguide connections. Compatibility helps avoid unnecessary transitions in the radar feed.

Inside the assembly, conductors maintain the electrical route as the sections rotate. In contact-based designs, sliding electrical interfaces bridge moving parts. The outer housing supports the assembly and helps keep its internal components in position. The exact arrangement depends on whether the joint uses a coaxial or waveguide transmission path.

Mounting features connect the joint to the antenna structure. Their position affects alignment with the rotation axis and connection to adjacent equipment. During design review, compare the mounting points, available clearance and cable or waveguide routing with the radar assembly. This can reveal access or interference issues before integration.

Channel count should reflect the complete signal-routing plan. Define a connection at both ends for each independent path, and document its role in the equipment specification. This makes it easier to assess whether the assembly provides the required routing without assuming spare channels can compensate for mismatched RF interfaces.

For an engineering review, record the following information in one specification:

• Transmission type and compatible equipment interfaces.
• Required frequency and power conditions.
• Number of independent signal paths and their destinations.
• Mounting geometry, alignment and available clearance.
• Mechanical movement and the installation arrangement.

Reviewing these details as one system helps expose conflicts between the radar feed and mechanical integration. A suitable electrical configuration, for instance, may still need a different mounting arrangement to fit the antenna assembly. A complete specification gives the design review a clear basis for assessing interfaces, signal routing and mechanical fit.

Document the assigned functions. In radar systems, multi-channel rotary joints can carry separate transmit, receive and beacon/IFF signals through the same rotating junction. This lets each path cross the rotating boundary within one joint while keeping the functions separate. The channel plan should identify each path’s function and confirm a connection at both ends. This links the joint’s channel count to the system’s signal-routing plan.

TME Systems: Mercotac Slip Rings

TME Systems can help when a radar assembly also needs electrical circuits transferred across a rotating interface. Its range includes Mercotac, Meridian Laboratory, BGB Innovation and Prosper Rotation slip rings. Technical application consulting helps match circuit count, current, voltage, speed, mounting style and environmental requirements to the application.

A slip ring and an RF rotary joint have related but distinct roles. A slip ring transfers electrical power or signals; the RF joint carries the radar’s radio-frequency path. If both are needed, define their functions separately and consider how each fits the rotating assembly. This keeps the specification focused on the right component.

For help assessing slip ring requirements alongside your rotary assembly, contact TME Systems or visit sliprings.com.au.

Set up the next engineering review

For a rotary joint for radar antenna systems in Australia, turn the system requirements into a clear specification. Bring together the RF architecture, signal paths, mechanical mounting and operating environment. This gives the engineering review a practical starting point and distinguishes RF rotary joint requirements from any separate electrical circuits crossing the rotating interface.

Where the assembly also requires electrical transfer, TME Systems’ technical application consulting can help assess slip ring requirements against circuit count, current, voltage, speed, mounting style and environmental conditions. Keep these details alongside the radar’s interface information to support a focused discussion of the complete rotating assembly.

When you’re ready to discuss the application, get in touch with TME Systems and outline the system requirements. A well-defined specification is a useful foundation for the next design decision.

FAQs

What is a rotary joint in a radar antenna system?

The rotary joint is the RF component specified at the boundary between the antenna assembly and fixed radar equipment. In a system drawing, mark which side rotates and label the joint’s interfaces and signal routes. This makes its position clear during design reviews and helps distinguish the RF rotary joint from separate electrical slip rings used for other circuits.

What is the price of a radar rotary joint in Australia?

There is no universal price. Cost depends on frequency, power handling, waveguide dimensions, channel count and operating conditions.

What Australian standards and regulations apply to radar rotary joints?

Applicable requirements depend on the equipment, installation and operating environment. Requirements can vary with the system and its installation.
