Could your choice of contact material be the hidden bottleneck in your motorised assembly? While most technical managers focus on the headline slip ring current rating when specifying hardware, the physical properties of the contact interface actually dictate the thermal stability and long-term reliability of the entire system. You've likely experienced the frustration of frequent downtime caused by contact wear or the erratic signal interference that occurs when connectors overheat in harsh Australian industrial environments.
This article provides a clear framework for understanding the trade-offs between materials like gold, silver, and liquid metal to help you achieve reduced maintenance intervals. You'll learn how material selection ensures your machinery remains compliant with AS/NZS 3000:2018 while maintaining signal integrity under high-duty cycles. We will examine why specific alloys are required for high-power transmission and how to confidently specify a slip ring current rating that withstands the unique demands of local sites.
Key Takeaways
- Learn how the electrical conductivity of specific contact pairings directly determines your slip ring current rating and helps manage heat generation.
- Understand the critical performance differences between gold-plated contacts for signal integrity and silver-graphite for high-capacity power transfer.
- Discover how to mitigate the effects of abrasive dust and high ambient temperatures common in Australian industrial and outback environments.
- Gain insights into reducing maintenance intervals by matching contact materials to the specific duty cycle of your critical machinery.
- Identify why a consultative approach to material selection is essential for ensuring long-term reliability in specialised rotary applications.
Understanding Slip Ring Contact Material: The Foundation of Rotary Transfer
A slip ring serves as the critical bridge for electrical signals and power across a rotating joint. At the heart of this component lies the contact material. This is the conductive interface where stationary brushes meet rotating rings to maintain electrical continuity. Choosing the right material is not merely a technical detail; it's the primary factor in selecting a slip ring for industrial use. The specific "contact pairing" between these two surfaces determines the efficiency of the transfer and the eventual slip ring current rating of the assembly.
In the Australian industrial landscape, where equipment often operates in high ambient temperatures, the choice of material becomes a matter of survival for the hardware. Industrial applications typically utilise three primary material categories:
- Precious Metals: Gold and silver alloys for high conductivity and superior corrosion resistance.
- Carbon-Graphite: Rugged, self-lubricating materials designed for high mechanical wear and substantial power loads.
- Liquid Metal: Gallium-based alloys, found in specialised Mercotac slip rings, which provide a near-seamless interface with exceptionally low resistance.
The Physics of Electrical Transfer in Motion
Moving electrical contacts face unique physical challenges. As the assembly rotates, friction generates thermal energy. If the electrical resistance at the interface is too high, this heat can exceed the material's limits and lead to premature failure. Contact pressure is another vital variable. Traditional brush systems require precise tension to ensure a stable connection without causing excessive mechanical wear. When this balance is missed, electrical noise increases. This is particularly problematic for sensitive data, where signal integrity depends on low-noise material pairings that don't fluctuate during rotation.
Categorising Materials by Application Type
We categorise materials based on the specific load they must carry. Signal-grade materials, often featuring gold-on-gold pairings, are used for low-voltage data and instrumentation where reliability is paramount. Power-grade materials, such as silver-graphite, are engineered for high amperage and thermal resilience. These pairings are designed to handle the load defined by the slip ring current rating without degrading the contact surface. For complex machinery, hybrid configurations are common. These allow a single unit to manage both high-power circuits and low-noise data signals simultaneously by using different material zones within the same housing. This ensures that a high-power motor and a sensitive sensor can both operate reliably through the same rotary joint.
How Material Science Dictates Slip Ring Current Rating
The slip ring current rating isn't an arbitrary figure; it's a thermal boundary defined by the laws of physics. Every material used in a rotary connector has a specific electrical resistivity that determines how much energy is lost as heat during transfer. When current flows across the contact interface, resistance converts a portion of that electrical energy into thermal energy. This process, termed Ohmic heating, increases exponentially as the amperage rises. If the contact material cannot efficiently manage this heat, the temperature at the junction will climb until it compromises the structural integrity of the component.
Thermal conductivity is just as vital as electrical conductivity. A material that conducts electricity well must also be capable of dissipating heat away from the rotating interface. Silver is often utilised in high-current applications because it possesses the highest thermal and electrical conductivity of any metal. Without efficient heat dissipation, the interface can reach temperatures high enough to cause contact welding or catastrophic insulation failure. This is particularly dangerous for slip ring performance in harsh environments where high ambient temperatures in Australian mining or industrial sites provide little room for thermal error.
Current Density and Surface Area
Current density is the measure of amperage per unit of contact surface area. To manage higher loads without changing the material properties, designers often employ multi-brush configurations. This approach spreads the electrical load across several contact points, which reduces the heat generated at any single interface. It's a pragmatic way to increase the slip ring current rating while maintaining a compact footprint. Material resistivity directly limits the maximum continuous amperage a specific contact area can sustain before the material begins to anneal or degrade.
Peak vs. Continuous Load Resilience
The ability of a material to handle transient surges differs from its capacity for continuous operation. Precious metals are excellent for handling sudden peaks due to their low resistance, but they may lack the mechanical hardness required for high-wear environments. Carbon-graphite brushes offer a different trade-off; they are remarkably resilient to mechanical wear and can handle high currents, though they may generate more electrical noise. Managing the duty cycle is a critical part of the specification process. Allowing for adequate cooling periods prevents the cumulative heat build-up that leads to premature failure. If you're designing a system with high-duty cycles, our technical application consulting can help you match the material pairing to your specific load requirements.

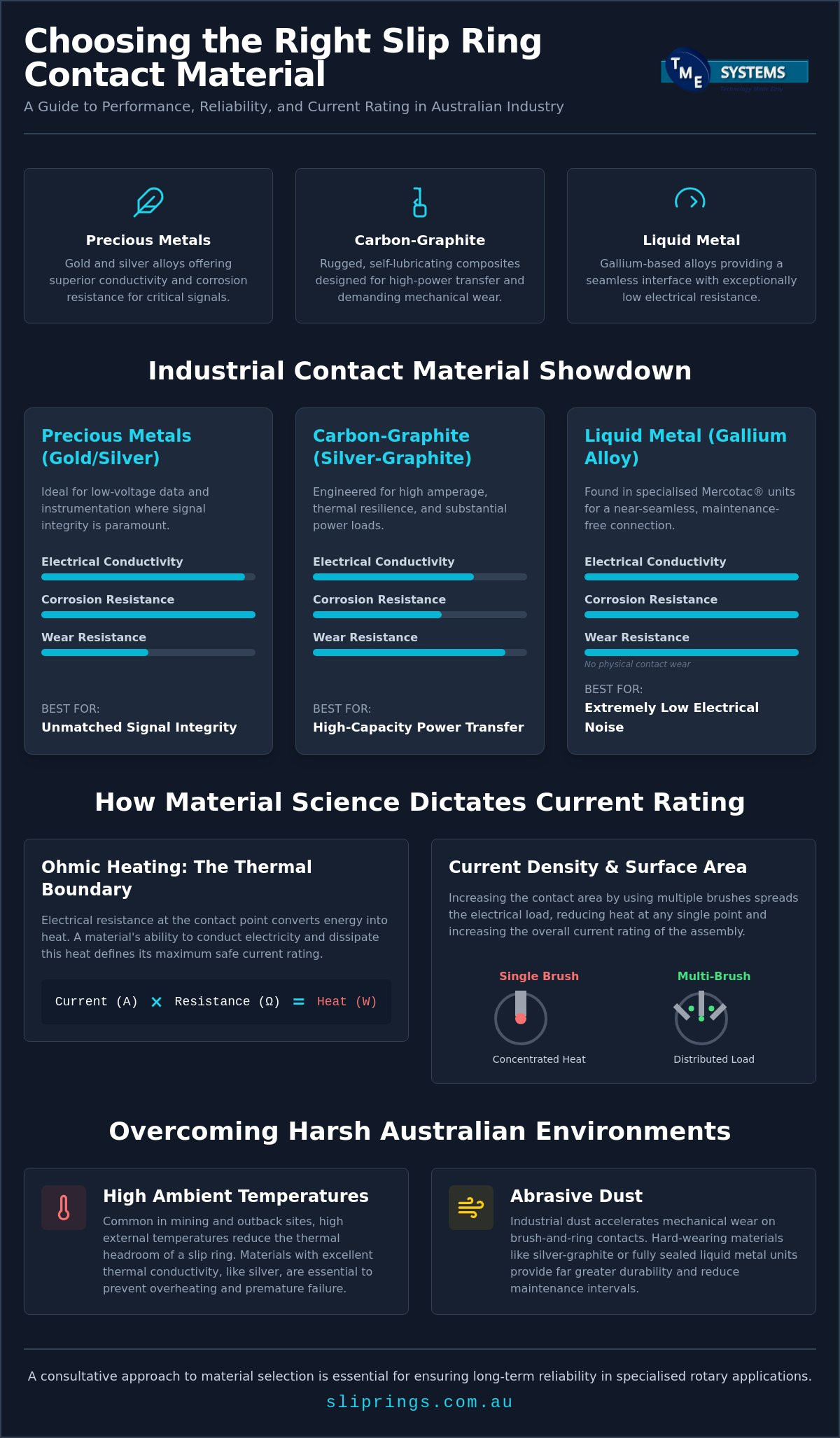

Comparing Common Industrial Contact Pairings
While the physics of Ohmic heating dictates the thermal limits of an assembly, the specific material pairing determines how your equipment behaves under operational stress. Engineers must balance conductivity against mechanical wear and environmental resilience. In Australian industrial applications, where dust and heat are constant variables, certain pairings have emerged as the standard for reliability. Selecting the wrong combination often results in a slip ring current rating that looks good on a data sheet but fails under the heat of a high-duty cycle.
For low-voltage data and sensitive instrumentation, gold-on-gold remains the industry benchmark. These signal slip rings utilise gold's exceptional resistance to oxidation. This ensures that contact resistance remains stable even when the current is as low as a few milliamps. In contrast, power-heavy applications typically rely on silver-on-graphite. This pairing leverages silver's superior conductivity to support a high slip ring current rating, while the graphite component provides essential self-lubrication to reduce mechanical wear during continuous rotation.
In applications where space is at a premium but current requirements remain high, liquid metal alloys offer a unique alternative. These gallium-based connectors provide a continuous liquid interface that eliminates the friction inherent in solid brush systems. For heavy-duty, low-speed power transfer, copper and brass remain cost-effective choices. While these materials require more frequent maintenance to manage oxidation, they are robust enough for the high-torque environments of large-scale industrial machinery.
Traditional Brushes vs. Liquid Metal Connectors
The primary differentiator between traditional brushes and liquid metal is the maintenance profile. Mercotac slip rings are often described as a "fit and forget" solution because they lack the physical brushes that eventually wear down and create conductive dust. This liquid interface also results in significantly lower electrical noise, making them ideal for combined power and data circuits. However, liquid metal units have specific RPM and orientation limitations that solid brush systems do not share. Solid contacts are more versatile in high-speed applications where centrifugal forces might disrupt a liquid connection.
Material Selection Framework for Engineers
Choosing a material requires a clear understanding of the primary goal. When data integrity is the priority, such as in Gigabit Ethernet or CCTV feeds, precious metals are mandatory to prevent signal loss. For heavy-duty lifting equipment like cranes or winches, the mechanical ruggedness of carbon brushes is often the better choice. In precision high-speed environments where both low noise and high durability are required, Meridian Laboratory slip rings provide a specialised solution. These units are engineered to maintain performance at rotational speeds that would cause standard industrial brushes to bounce or overheat.
Environmental Factors in Australian Industrial Sites
Operating industrial machinery in Australia requires a pragmatic approach to environmental variables. Unlike controlled factory floors, outback mining operations and utility-scale solar installations subject hardware to extreme conditions. High ambient temperatures, pervasive abrasive dust, and corrosive coastal salt spray all influence how a contact material performs over time. If these factors are ignored during the specification phase, the nominal slip ring current rating becomes unreliable as the material's thermal and mechanical limits are prematurely reached.
Abrasive dust is particularly problematic in Western Australian and Queensland mining sites. When fine particulates enter an open-collector ring, they act as an abrasive, accelerating the wear of carbon brushes and increasing electrical resistance. This resistance generates additional heat, further taxing the system. Utilising IP65 slip rings is the most effective way to protect sensitive contact materials from ingress. These sealed units ensure that the conductive interface remains isolated from the external environment, preserving the integrity of both power and signal circuits.
Thermal Management in the Australian Heat
In regions where ambient temperatures frequently exceed 40°C, engineers must apply a derating factor to the standard slip ring current rating. This adjustment accounts for the reduced "thermal headroom" available to dissipate Ohmic heating. High heat also affects the binders in carbon brushes, potentially leading to increased friction or "gumming" of the contact surface. Thermal equilibrium is significantly harder to achieve in non-vented enclosures because there is no path for the accumulated heat to escape through convection.
Combating Contamination and Oxidation
Coastal and high-humidity environments pose a different set of risks. In these areas, moisture can facilitate the rapid build-up of oxide films on base metals like copper or brass. This is why gold-plated contacts are preferred for signal circuits; gold remains chemically stable and conductive even in salty, humid air. Sealed capsule designs provide a secondary layer of defence by preventing particulate ingress from reaching the rotating interface. For dusty refineries or cement plants, maintenance schedules for open-collector rings must be strictly followed to prevent conductive dust paths from forming between circuits. If you are unsure how your site's conditions will affect your hardware, our technical application consulting can help you select the most resilient material pairing for your project.
Optimising Your System with Professional Material Selection
Relying on a "one size fits all" approach is a common precursor to premature component failure in industrial settings. While a standard unit might satisfy a basic slip ring current rating on paper, it often fails to account for the specific duty cycle or the unique environmental stresses of your site. A crane operating intermittently requires a fundamentally different contact profile than a solar tracker moving continuously throughout the day. Technical application consulting ensures that these nuances are addressed during the design phase rather than after a breakdown occurs.
TME Systems Pty Ltd supports the Australian industrial sector by providing a bridge between complex engineering requirements and specialised hardware. Our focus is on long-term reliability and technical accuracy. By auditing your current rotating connections for thermal efficiency, you can identify potential bottlenecks before they lead to costly downtime. This proactive approach allows you to move beyond generic specifications and toward a system designed for the physical realities of your application.
Custom Configurations for Unique Requirements
Modern industrial designs frequently require the transmission of high-current power alongside sensitive data signals within a single housing. Modular assemblies allow these disparate requirements to be managed effectively. For instance, BGB Innovation slip rings are often specified for heavy-duty wind and marine energy projects where mechanical resilience is non-negotiable. Conversely, Prosper Rotation slip rings offer a compact and cost-effective pathway for high-speed automation where space is limited but performance cannot be compromised. These custom configurations ensure that each circuit uses the optimal material pairing for its specific load.
Partnering with TME Systems for Technical Certainty
Specifying a rotary connector involves more than just matching a voltage and circuit count. It requires a thorough understanding of how the slip ring current rating will behave under the specific environmental stresses of an Australian site, from the heat of the Pilbara to the humidity of the Queensland coast. Working with local experts ensures that your installation remains compliant with AS/NZS 3000:2018 and other relevant safety standards. We provide the technical certainty needed to specify hardware for critical infrastructure where failure is not an option.
If you are ready to improve the reliability of your rotating assemblies, take the first step by reviewing your current specifications against your actual operational data. Consult with TME Systems for your slip ring requirements to ensure your next installation is optimised for performance, safety, and longevity.
Securing Reliability through Precise Material Specification
Selecting the correct contact material is the most effective way to ensure your hardware maintains its slip ring current rating under the stress of a high-duty cycle. We've explored how precious metals protect signal integrity while silver-graphite and liquid metal alloys provide the thermal resilience needed for high-power loads. In the Australian industrial landscape, factors like abrasive dust and extreme ambient heat make this material choice a critical safety and performance decision. Ignoring these variables often leads to premature wear and unnecessary operational downtime.
TME Systems supports your projects as an authorised Australian distributor for Mercotac and Meridian Laboratory. We provide specialised technical support for the mining, defence, and automation sectors with national supply managed from our NSW distribution centre. Our team helps you bridge the gap between complex electrical requirements and the physical realities of your site environment. To ensure your next project is built for long-term stability, Request a Technical Consultation for Your Slip Ring Application today. We look forward to helping you achieve technical certainty in your rotating systems.
Frequently Asked Questions
What is the best contact material for high-speed data transmission?
Gold-on-gold pairings are the benchmark for high-speed data transmission, including Gigabit Ethernet and high-definition video signals. Gold's exceptional resistance to oxidation ensures that contact resistance remains stable over millions of rotations, preventing the signal degradation that occurs with base metals. While silver offers higher raw conductivity, gold’s chemical stability in humid or contaminated environments makes it the reliable choice for sensitive instrumentation.
How does current rating change with rotational speed (RPM)?
Increasing the rotational speed generally requires a review of the slip ring current rating because higher RPMs generate more frictional heat at the contact interface. As speed climbs, the mechanical wear increases and the time available for heat dissipation at any single point on the ring decreases. In high-speed applications, you must often specify materials with lower friction coefficients or superior thermal conductivity to maintain the required amperage without overheating.
Why do carbon brushes require more maintenance than precious metal contacts?
Carbon brushes are sacrificial components that physically wear down against the rotating ring to maintain electrical contact. This process naturally creates conductive carbon dust that can accumulate inside the housing, potentially leading to short circuits or signal interference if not cleaned regularly. Precious metal contacts, such as gold or silver wire brushes, produce significantly less debris and operate with much lower mechanical friction, which extends the intervals between services.
Can I use a liquid metal slip ring for high-power industrial motors?
Liquid metal slip rings are highly effective for high-power motors because they provide a near-seamless connection with exceptionally low electrical resistance. Mercotac units can handle substantial current loads in a compact footprint, often outperforming traditional brush systems in thermal efficiency and longevity. You must ensure the unit is mounted in the correct orientation as specified by the manufacturer to maintain the liquid metal seal during operation.
What happens to the current rating if the ambient temperature exceeds 40 degrees?
When the ambient temperature exceeds 40°C, you must apply a derating factor to the slip ring current rating to prevent the assembly from exceeding its maximum operating temperature. Most standard ratings are calculated at a 20°C baseline; as the surrounding air gets hotter, the unit's ability to dissipate Ohmic heating is reduced. Failure to derate the current in these conditions can lead to catastrophic insulation failure or permanent deformation of the contact surfaces.
Is gold-on-gold always the best choice for low-noise applications?
Gold-on-gold is excellent for low-noise signals, but liquid metal connectors provide the lowest electrical noise profile currently available. While gold offers a stable and low-resistance path, it still involves solid-to-solid friction that can generate minute electrical fluctuations. Liquid metal alloys eliminate this mechanical friction entirely, providing a continuous conductive path that is often required for high-precision sensors where even millivolt fluctuations are unacceptable.
How do I know if my slip ring contacts are wearing out prematurely?
Premature wear is usually identified by an increase in electrical noise, intermittent signal drops, or a measurable voltage drop across the rotating joint. In traditional brush systems, you might see an excessive build-up of black dust or visible scoring and pitting on the ring surface. Performing a thermal audit with an infrared camera can also help you identify "hot spots" that suggest the contact interface is no longer operating efficiently.
Are there mercury-free alternatives for food-grade packaging machinery?
Solid contact slip rings using silver or gold alloys are the standard mercury-free alternatives for the food and beverage industry. While liquid metal units are highly efficient, many Australian food safety regulations prohibit mercury near production lines to prevent contamination risks. Manufacturers like BGB Innovation and Prosper Rotation provide high-performance solid contact assemblies that meet the strict hygiene and safety requirements of modern packaging facilities.
